Vision laser cutting machine

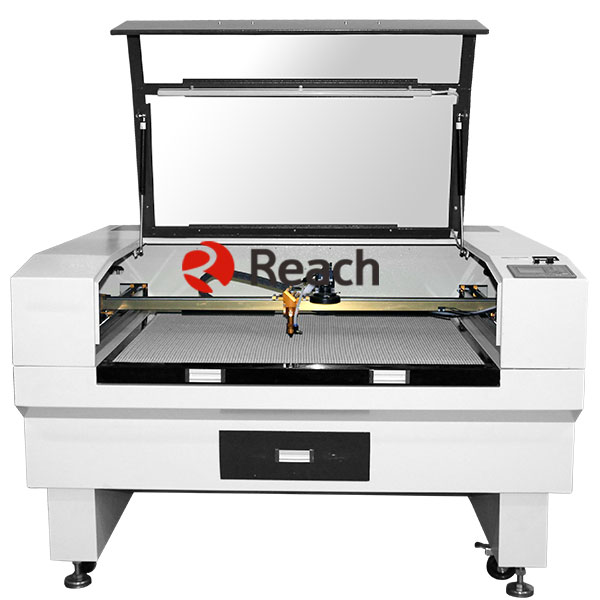

RC1610-CCD Vision laser cutting machine
- Product model: RC1610-CCD
- Laser type: CO2
- Laser tube power: 90-130W(optional)
- Work area: 1500mmx950mm
- Cooling type: Water cooling
- Email US: reach@reach-automation.com
- FEEDBACK
RC1610-CCD Vision laser cutting machine
Features:
1. With CCD camera for cutting design contour, Camera positioning system automatically search the outline of each label and cut after software set.
2. The camera system extracts contour of the patterns, then the software will help to search the same pattern automatically, then do the cutting accordingly, very efficient.
3. Adopts DSP to ensure the software enjoy the powerful data processing ability, no deformation and distortion for high-speed continuous curve cutting.
4. Widely applied for Woven labels, embroidery patches, printed labels, garment and leather accessories.
5. Work area of 1500mm x 950 mm, big working area for big pieces products
6. Laser source CO2 90-130w glass tube
7. Low maintenance costs
8. Good extraction system makes less smoke with clean cutting effect
Straight line guide rail to make sure the stability and high precision.
Honeycomb table
Machine comes with accessories: Chiller, blower, air compressor and software.
Optional choice:
Auto-feeding system for rolls of labels
An overhead camera which can scan the whole table size and process the sublimation, digital printing sportswear.

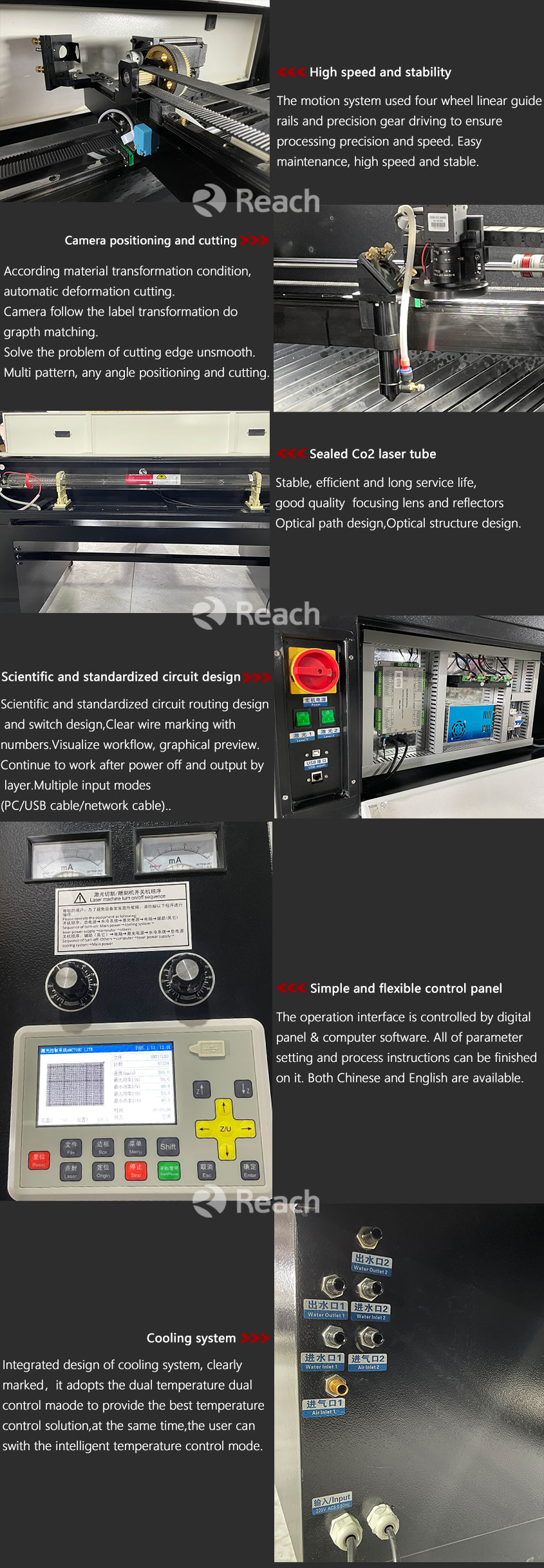

Details of the laser machine
Technical Parameter：
| Model | RC1610-CCD |
| Laser type | CO2 |
| Laser Tube Power | 90-130W(optional) |
| Laser head | Single Head |
| Driving system | Step motor |
| Working Area | 1500mmx950mm |
| Dimension | 2200mmx1690mmx1175mm |
| Weight | 402KG |
| Power Supply | AC220-240V 50/60Hz |
| System and File Format | Win 10 ,PLT.DST.AI.DXF.BMP.JOG.CAD.CDR.DWG. |
| Position Accuracy | ±0.1mm |
| Speed | Cutting speed 0-36 m/min and engraving speed: 64 m/min. |
| Cooling type | Water cooling |
| Work environment | Clean, less dust,Temperature 10℃~35℃,Humidity: 30%-80% |

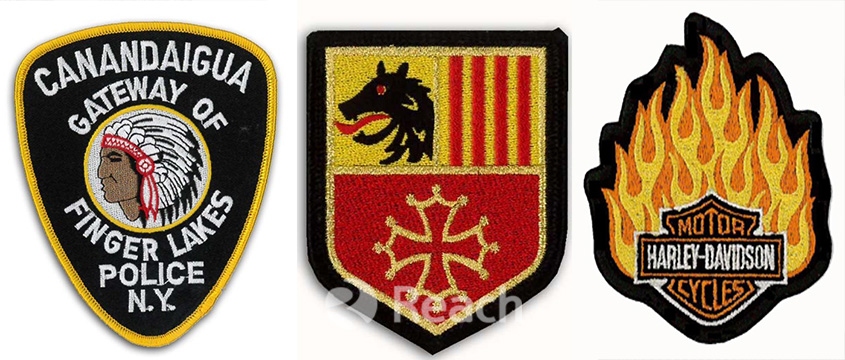

Cutting samples
Reach laser provides free sample making service for you.
Application materials:
Woven labels, embroidery patches, printed labels, garment, and leather accessories.
